SKF TMHC 110E Hydraulic puller kit

Workpiece outer diameter range, using arms
Set 1: 50 to 110 mm
Set 2: 75 to 170 mm
Reach, using arms (max)
Set 1: 65 mm
Set 2: 115 mm

Please click "Inquire" to get more information

Availability:



Inquire

Model:
TMHC 110E Hydraulic puller kit
Brand:
SKF

More details

Product Description

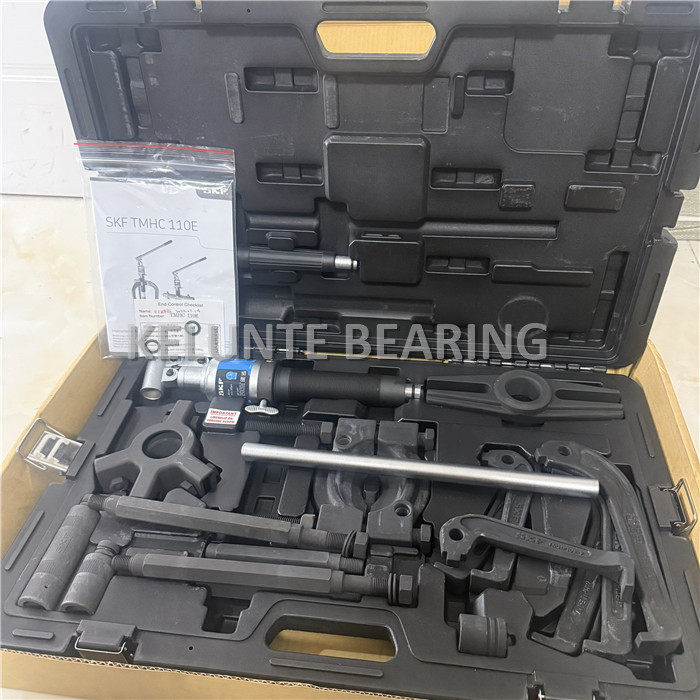

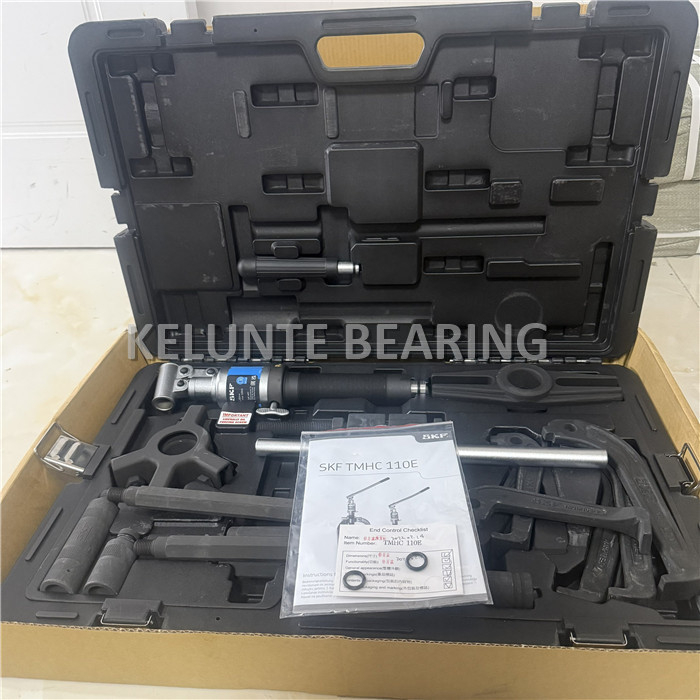

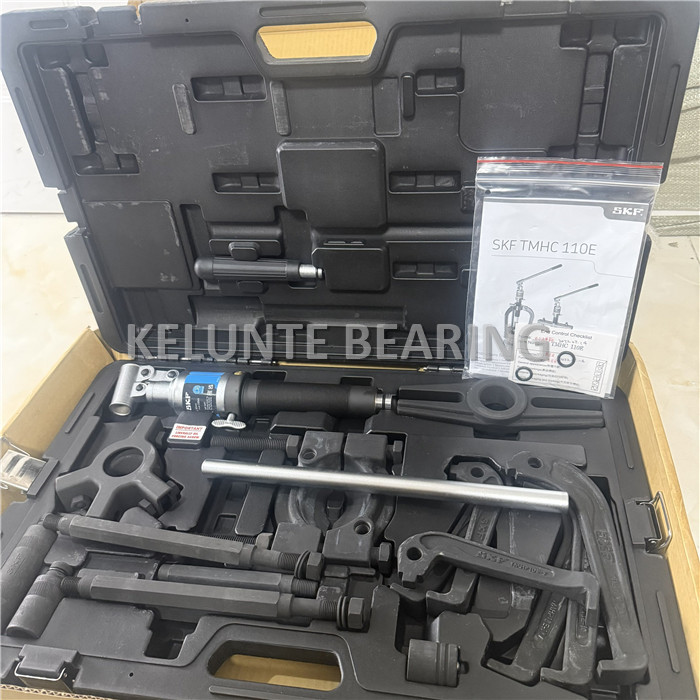

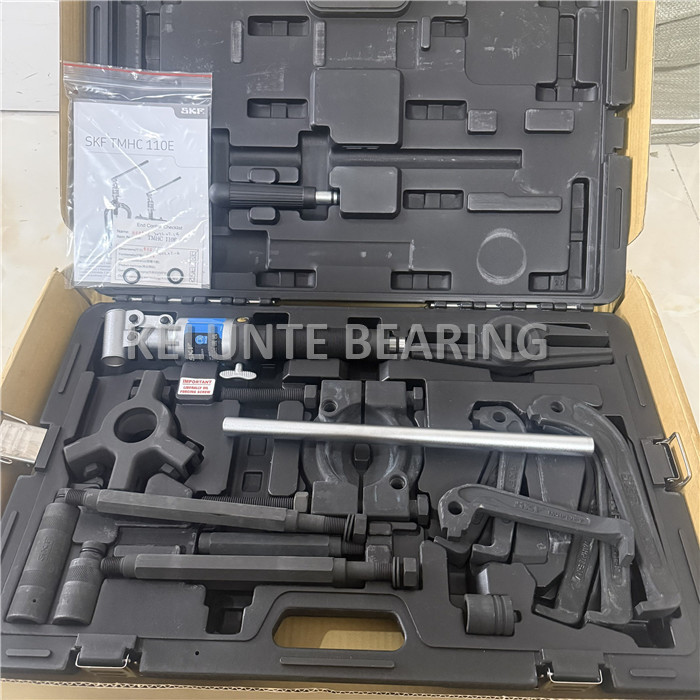

The TMHC 110E is a hydraulic puller kit that combines a jaw puller and a strong back puller. The kit includes two arm sets with different lengths that can be used in 2-arm or 3-arm configuration and a back puller with a maximum reach of 250 mm (9.8 in.). The hydraulic spindle with safety valve enables safe and effortless dismounting for various bearings and components. The spring-loaded centre piece and self-locking puller arms further support safe and easy puller operation.

Model Number	TMHC 110E Hydraulic puller kit
Claw height	8mm
Claw length	15mm
Claw width	25mm
Hydraulic spindle, piston stroke	80mm
Dismounting force generation	Hydraulic spindle,TMHS 100
Material	Alloy engineering steels, hardened and tempered
Case dimensions (l x h x w)	580 x 410 x 70 mm
Weight	15.1kg
Brand	SKF
Color	Black, Sliver
Recommended storage temperature	5°C to 40 °C
Category	Hydraulic puller kit
