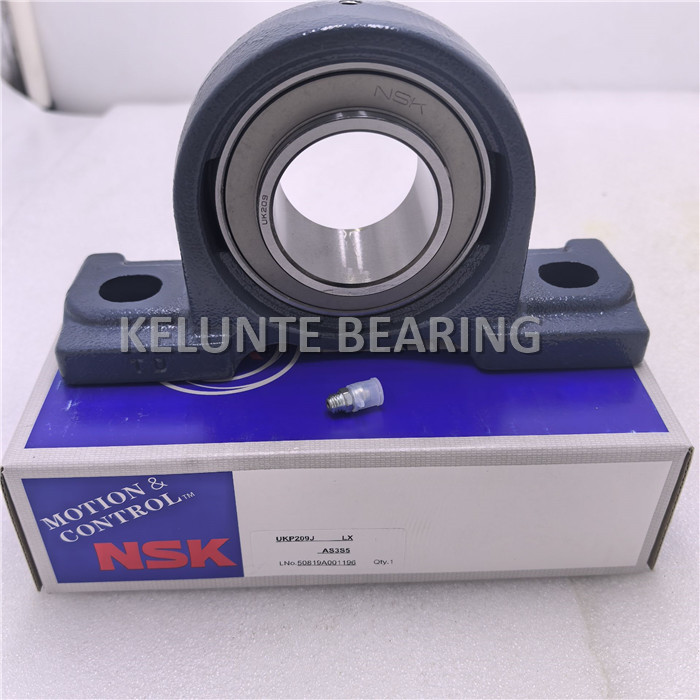

Original NSK UKP209 Pillow block ball bearing uint

NSK UKP209 bearing
Size: 40x108x189.5mm
Number of rows: Single row
Bearing material: Bearing steel
Housing material: Cast iron
Cage: Sheet metal
Please click "Inquire" to get more information

Availability:
  • UKP209 bearing

  • NSK

|

 Product Description

Pillow (plummer) block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. This variant is strong and stiff, and is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening a set screw on the inner ring, making it easy to mount.

1.Strong

2.Designed for a constant and alternating rotation

3.Ready to mount

4.Lubricated and sealed bearing

5.Quick locking onto the shaft

6.Cost-effective


Bearing number  UKP209 bearing
Bore diameter  40mm
Base width 51mm
Top width 31mm
Overall height 108mm
Overall length 189.5mm
Distance between attachment bolts 146mm
Weight 2.07kg
Brand NSK
Bore type Cylindrical
Category Pillow block bearing

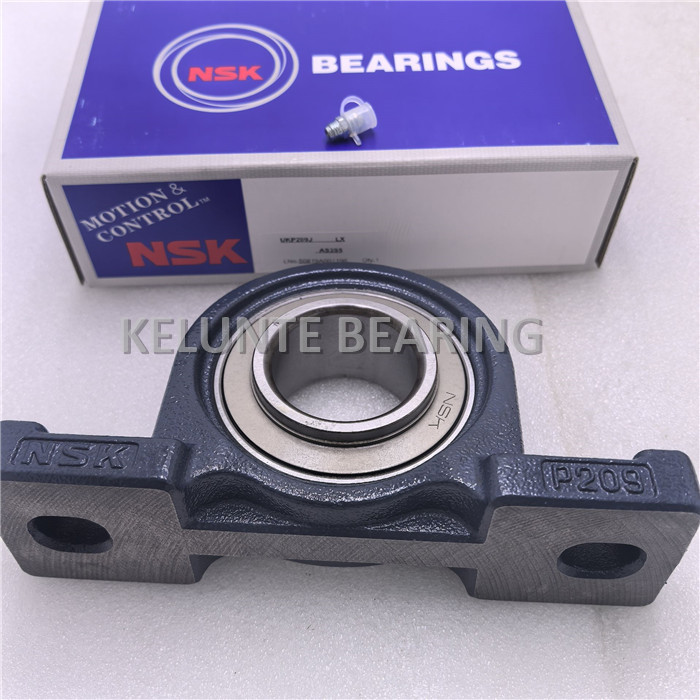

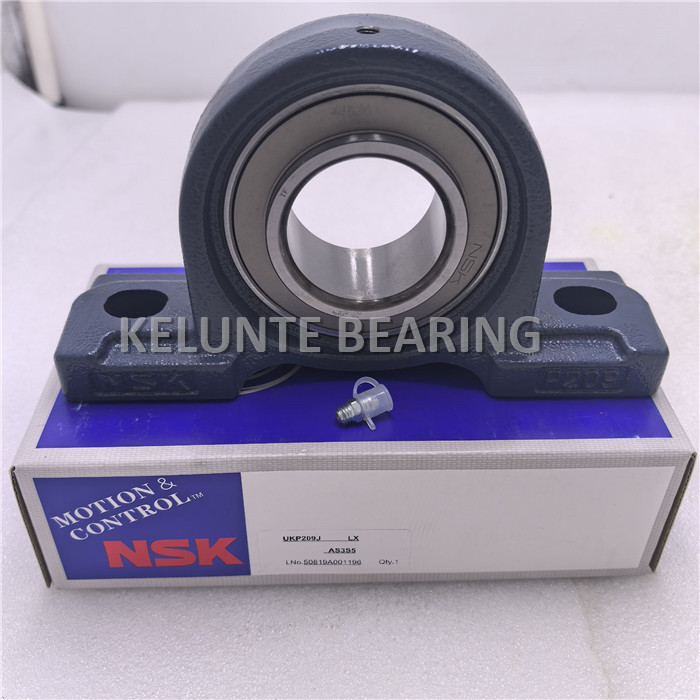

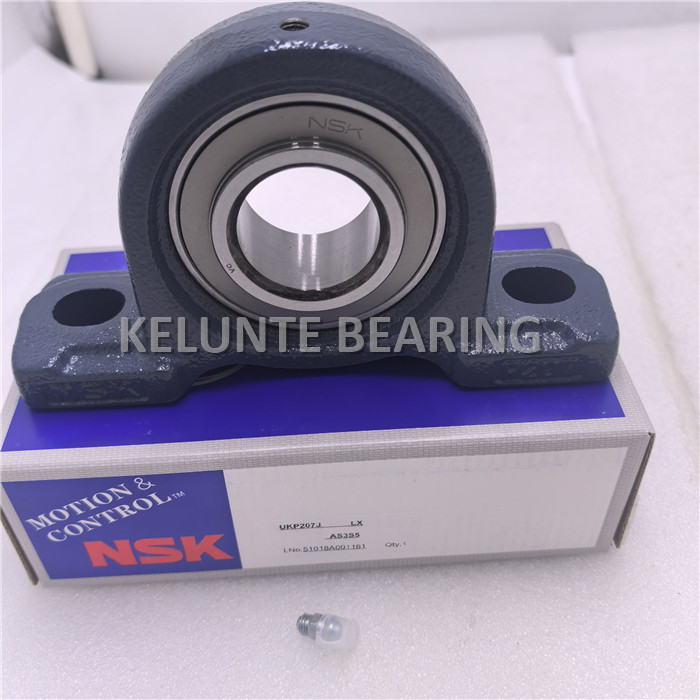

NSK UKP209 (6)NSK UKP209 (1)NSK UKP209 (3)
