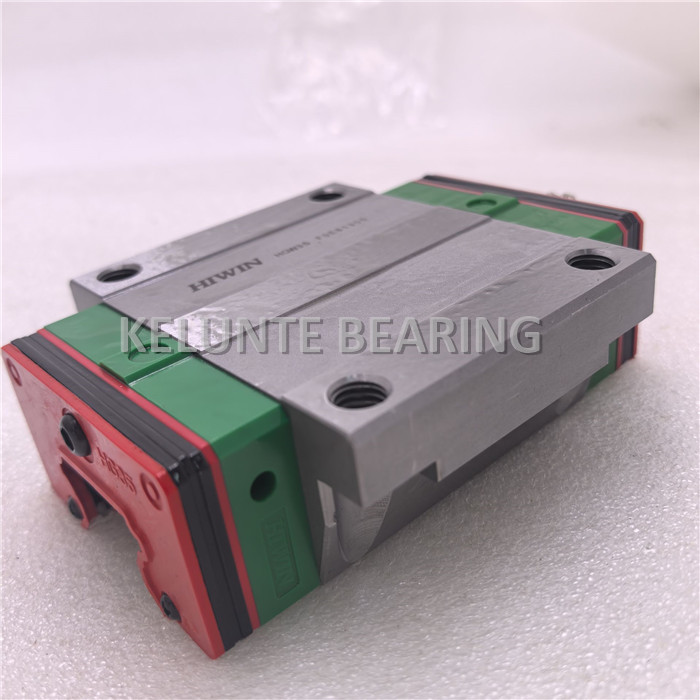

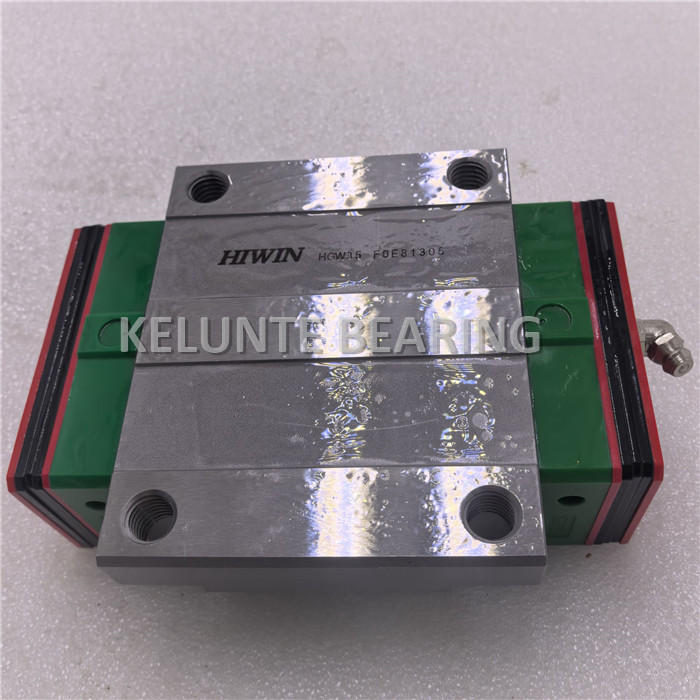

HGW35CCZAKK
HIWIN
|
Product Description
A linear guide block, or "carriage," is a component of a linear guide. This block is situated on the rail. Internal steel ball bearings minimize friction, allowing the block to travel up and down the rail smoothly. These bearings can be easily fall out if the carriage is opened, and they cannot be easily replaced once removed. It is therefore recommended that users not open the block. Linear carriages are most commonly made of carbon steel or stainless steel.
| Bearing number | HGW35CCZAKK bearing |
| Size | 35mm |
| Block width | 100mm |
| Block length | 112.4mm |
| Weight | 1.56kg |
| Brand | HIWIN |
| Category | Linear guide block |
